Special offerLED-AP9X
Superior Illumination
Coverage

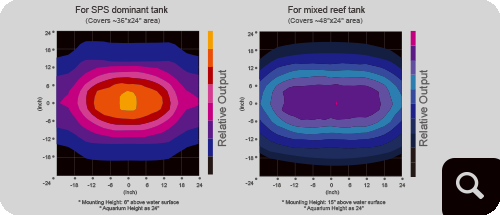

Redesigned optics provide an even light distribution that blankets your aquarium with up to 48” of coverage. This uniform coverage minimizes hotspots and creates an effect similar to that of a metal halide / T5 combo.
Total Control
Kessil Ecosystem
With two K-Link and two 0-10V control ports, the AP9 can be easily wired to adjacent Kessil fixtures. Lights in a wired group can then be app-controlled via the AP9’s WiFi connection. A single AP9 can act as the wireless access point for up to 10 X-Series lights and 20 0-10V lights - giving you total control over all of your tanks.
K-Link + WiFi
Multiple-fixture setups can be controlled via individual WiFi connections or daisy-chained together to access up to 32 lights via one master fixture. Don’t want WiFi signals or interference? Turn off the WiFi and control the AP9 with the built-in manual controls or the Spectral Controller .
X-Unleashed
Use Kessil’s newly redesigned smartphone app to arrange groups, set schedules, add special effects, and customize colors.
Crafted for Excellence
Sleek yet Robust
With design elements inspired by marine fauna, high-performance automotive engineering, and the sun itself, the AP9 boasts a sleek, unobtrusive profile with an aesthetically pleasing touch panel. Not just a box of LEDs—the AP9 compliments the natural beauty of a well-maintained aquarium.
Single Arm Mount
The new AP9 Mounting Arm allows the fixture to be mounted with a single arm - the most light spread from a single arm mount fixture on the market. The integrated swivel joint allows 60 degrees of vertical rotation and 180 degrees of horizontal rotation - Allowing you to adjust your light to the orientation best suited for your tank.
Technical Specifications
| Dimensions ( L x W x H ) | 16.46" x 5.71" x 1.42" / 41.8cm x 14.5cm x 3.6cm |
| Unit Weight | 2.29lb / 1.04kg |
| Spectrum | Tuna Blue + Red + Green + Purple (Violet + Indigo) |
| Coverage | Up to 48” x 24” Mixed Reef / 36" x 24" for SPS Dominant Systems |
| Power Adapter | 100-240V AC 50-60Hz (Input), 48V DC (Output) |
| Power Consumption | 185W max AC |
What's in the Box
-
1x AP9X
-
1x Power Adapter
-
1x Adapter Cable
-
4x Metal Screw Hook & Hanging Bracket
-
3x QR Code Stickers
