Spectral Controller X

Step 1 Power

• Plug the K-Link Cable (10’) to the K-Link (female).

• Plug the other end to the A360X K-Link Port.

• Plug the A360X to the power supply and plug the AC cable of the power supply to a wall outlet.

Alternative

• Plug the Micro USB Cable to the Micro-USB port and to a 5V/1A USB power adapter. (USB power adapter not included)

* The Spectral Controller X can be powered off through A360X if the controller is not connected to a 5V/1A USB power adapter.

Step 2 Set Up

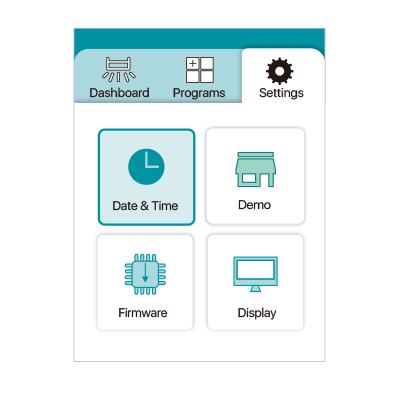

• Use the Direction Pad  to navigate to the Settings tab.

• Press  to access the settings.

• Press  to return to tab options.

Demo Settings

• When Demo Mode is turned on, any adjustments will not be saved. After the set minutes of inactivity, light will automatically revert back to the settings/programs prior to Demo Mode. This is designed for retail stores to allow customers trying out the control and functions.

Step 3 Choose the Program

• The Status Page will cycle through the status of each group every 2 seconds.

• Press  to enter tab options. Press  one more time to enter Dashboard.

• In the Dashboard, press  to select group, press  to select program.

• Under Manual Color, press  to set the manual colors & intensity. Navigate to Effect tab to try out the effects. Navigate to Group tab to group the lights

Step 4 Set the Group

• From the Status page, press to enter tab options. Press  one more time to enter Dashboard.

• In Dashboard, press  to select group, press  to highlight your group. Press  to select "Manual". Press to enter "Manual"

• Navigate to the  tab, press  until  is selected and press to enter group arrangement mode.

• Press   to select lamps and navigate to the desired interacting group (bottom part).

• Press  to move lamps from active group (top part) to interacting group(bottom part) or vise versa.

Note: The 4-digit number is the last 4-digit of the Serial Number of the lamp

Step 5 Program

• Use the Direction Pad (C) to navigate to the Programs tab.

• Press  to access the programs settings

• Press   to navigate between preset programs or new program and press  to enter.

• Press  to choose time point and press  to enter for detail settings.

• Press  to navigate between functional settings, press  to adjust value.

Note: After creating your Program, remember to go to Dashboard and choose your program under the group.

Step 6 Mounting

• Use the screws provided to mount the magnetic back plate to a wooden surface.

• If mounting to a dry wall, pre-drill two 1/4" (6.5mm) holes and insert nylon anchors before screwing the plate in.
